Diode Dynamics Stage Series Reverse Light Kit for 2016–2023 Toyota Tacoma

Description

Features:

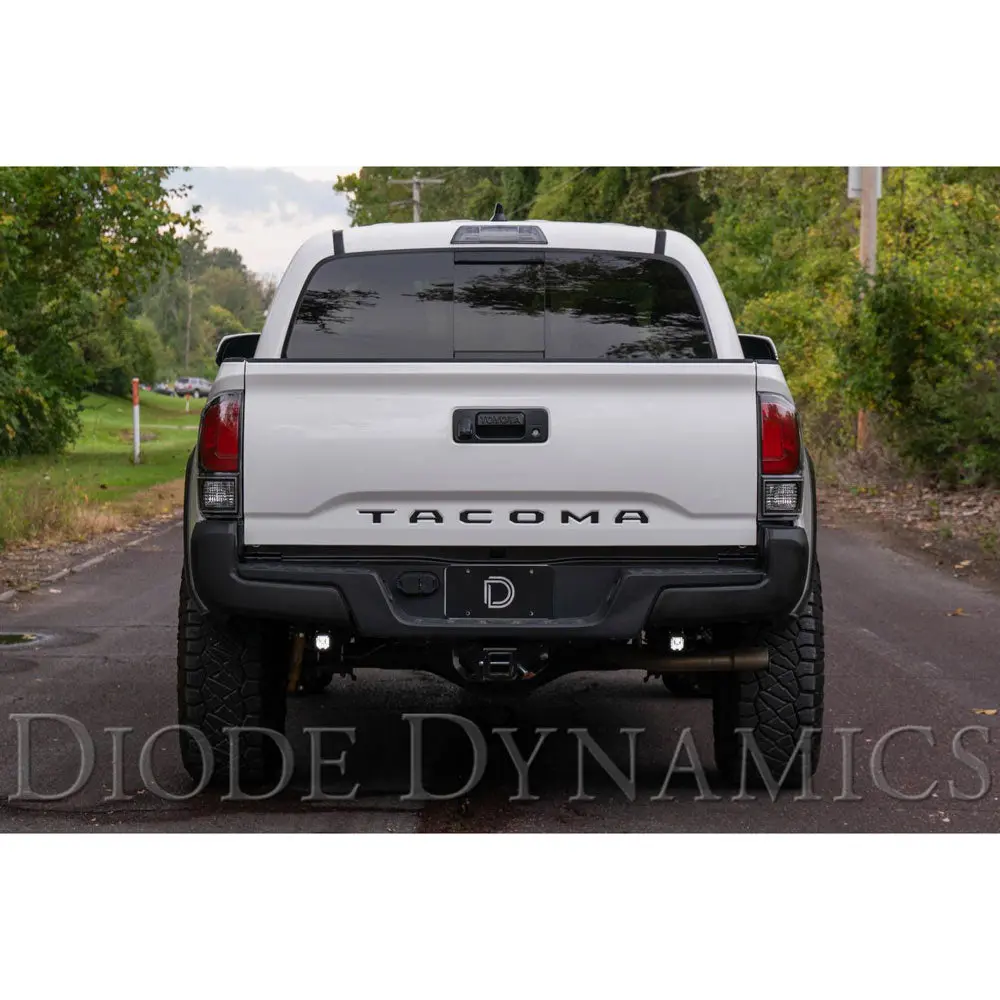

• Allows you to mount SSC1 or SSC2 pods underneath the 2016-2023 Toyota Tacoma rear bumper.
• Plug-and-play wiring harness, with OEM connectors and toggle switch override.

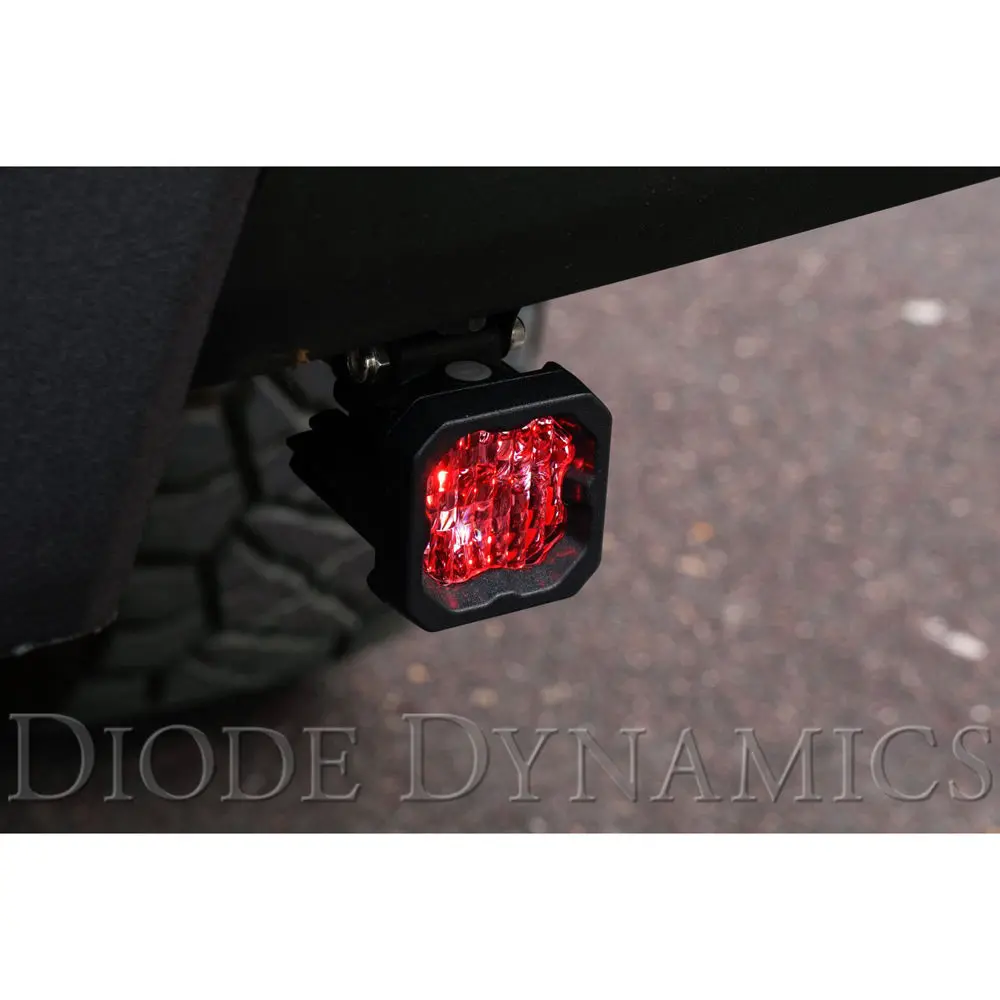

• Provides high-power reverse light, and red accent light.
• Designed and assembled in the USA.

In the Box:

• Two (2) SSC1 or SSC2 Standard LED pods.
• One (1) Universal reverse light wiring harness.
• One (1) Adapter harness for 2016-2021 Toyota Tacoma.
• Two (2) Mounting brackets.
• Ten (10) Zip ties.
• Two (2) T-taps.
• Mounting hardware.
• Quantity: Two (2).
• Fitment
• Make & model: Toyota Tacoma.
• Years: 2016-2023.

Specifications:

• Color Temp (CCT): 6000K
• Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, SSC2 Sport: 7.7, SSC2 Pro: 25.6
• Operating Voltage: 9-16V
• Current (amps @ 12.8V): SSC1 Sport: 1, SSC1 Pro: 1.5, SSC2 Sport: 0.6, SSC2 Pro: 2
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Luxeon Z ES, Cree XP-L HI
• Connector(s): Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive, Pin-Fin heatsink
• Compliance Ratings: SAE J575 Durability Test
• Intrusion Ratings: IP67 Weatherproof
• Unit Weight (lbs.): SSC1: 3.25 SSC2: 3.5
• Product Weight (lbs.): SSC1: 3.75 SSC2: 4.15
