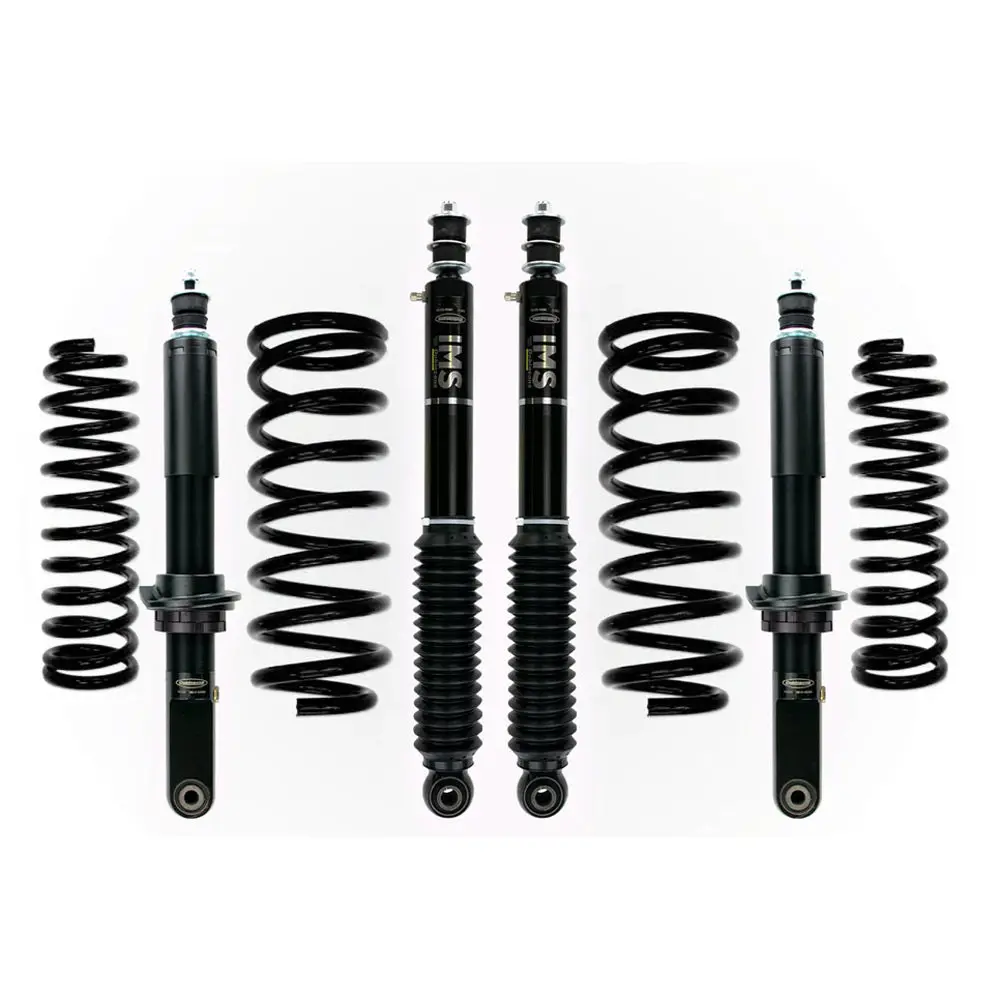

Dobinsons IMS Lift Kit – 2″ to 3″ for Toyota Tundra (2022–2024)

Description

Front coil spring specs:

• C59-834 (50mm – 2″) 0-110lb Load.
• C59-836 (50mm – 2″) 110-220lb Load.
• C59-838 (75mm – 3″) 0-110lb Load.
• C59-840 (75mm – 3″) 110-220lb Load.

Rear coil spring specs:

• C59-835V (25mm- 1″) 0-110lb Load.
• C59-837V (25mm- 1″) 220-440lb Load.
• C59-839V (25mm- 1″) 550-770lb Load.
• C59-841V (50mm-2″) 0-110Lb Load.
• C59-843V (50mm-2″) 220-440lb Load.
• C59-845V (50mm-2″) 550-770lb Load.

Features:

• Complete suspension kit for 4×4 Off Road Use, fine tuned to match the vehicle.
• Fully re-buildable and re-valvable.
• vZero shock fade in all terrains with full load.
• Superior Designed Nitro Gas Monotube Shocks, thicker walls, longer travel.
• Corrosion resistant (EDP Surface Protection).
• Direct, bolt-on replacement for easy fitment.
• 60mm hi-flow CNC 6061 Billet alloy piston.
• 2.6″ Precision Honed Shock Body.
• Heavy duty single piece lower leg.
• Japanese NOK Multi-Lip seals, Fuchs German shock absorber oil, Natural Rubber Bushings for reduced noise vibration and flexibility.
• High Quality Australian-made coil springs, heat treated, fully scragged, powder coated.
• IMS59-60685 / IMS59-60885 Long Travel Shocks Require 1.5″ bump stop extensions and extended brake lines
• If doing a 2.5″ lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, faliure to complete these requirements could cause OE CV-axle faliure. 14mm bump stop extensions are also required
• TRD axle shafts: PT362-3432B and PT362-3431B
• Coil seat for IMS59-60446 should be set at 175mm (6.87″) from the strut bushing eye to top of coil isolator.

All Colorado local pick-up orders for the IMS Lift Kit is subject to a $150 transport fee.
