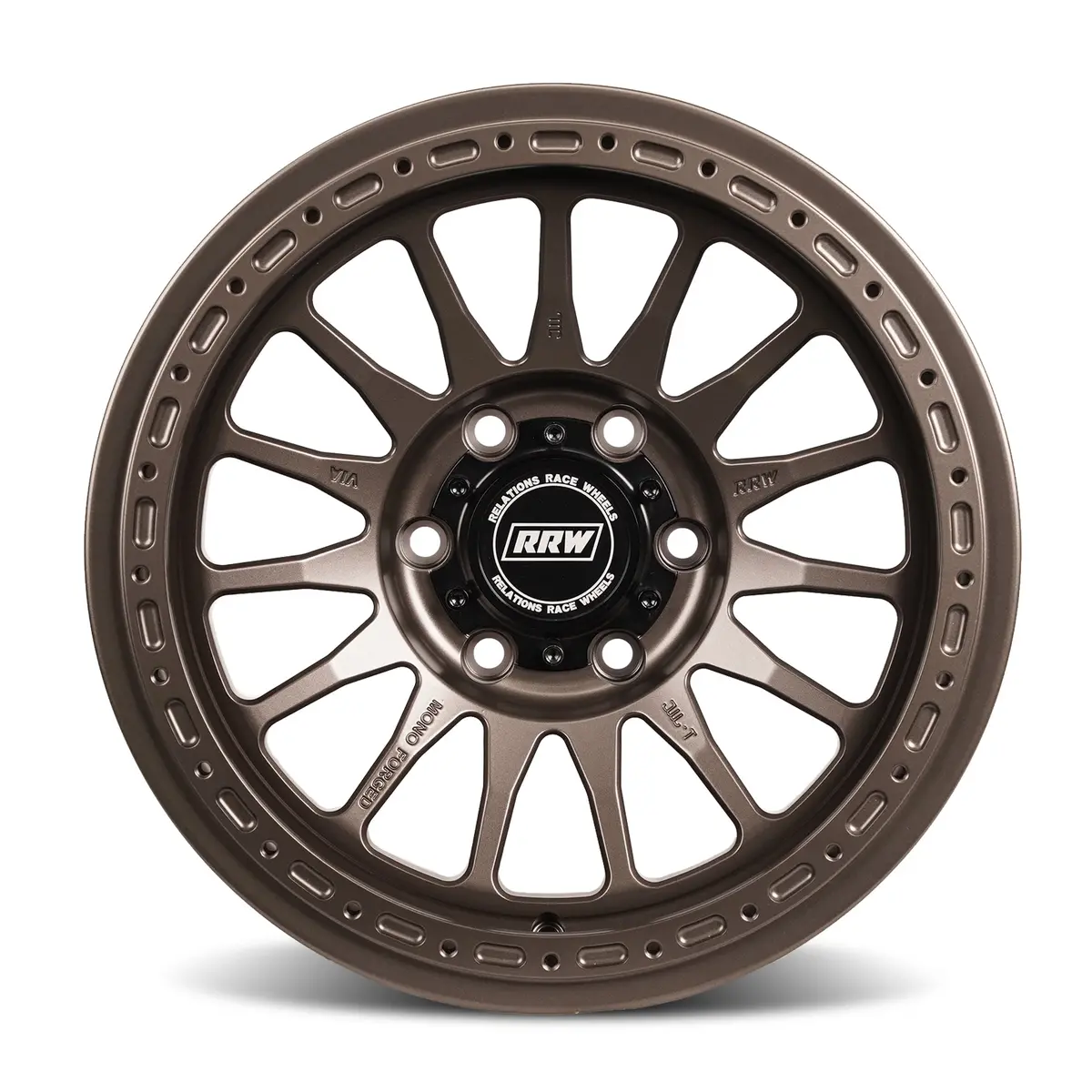

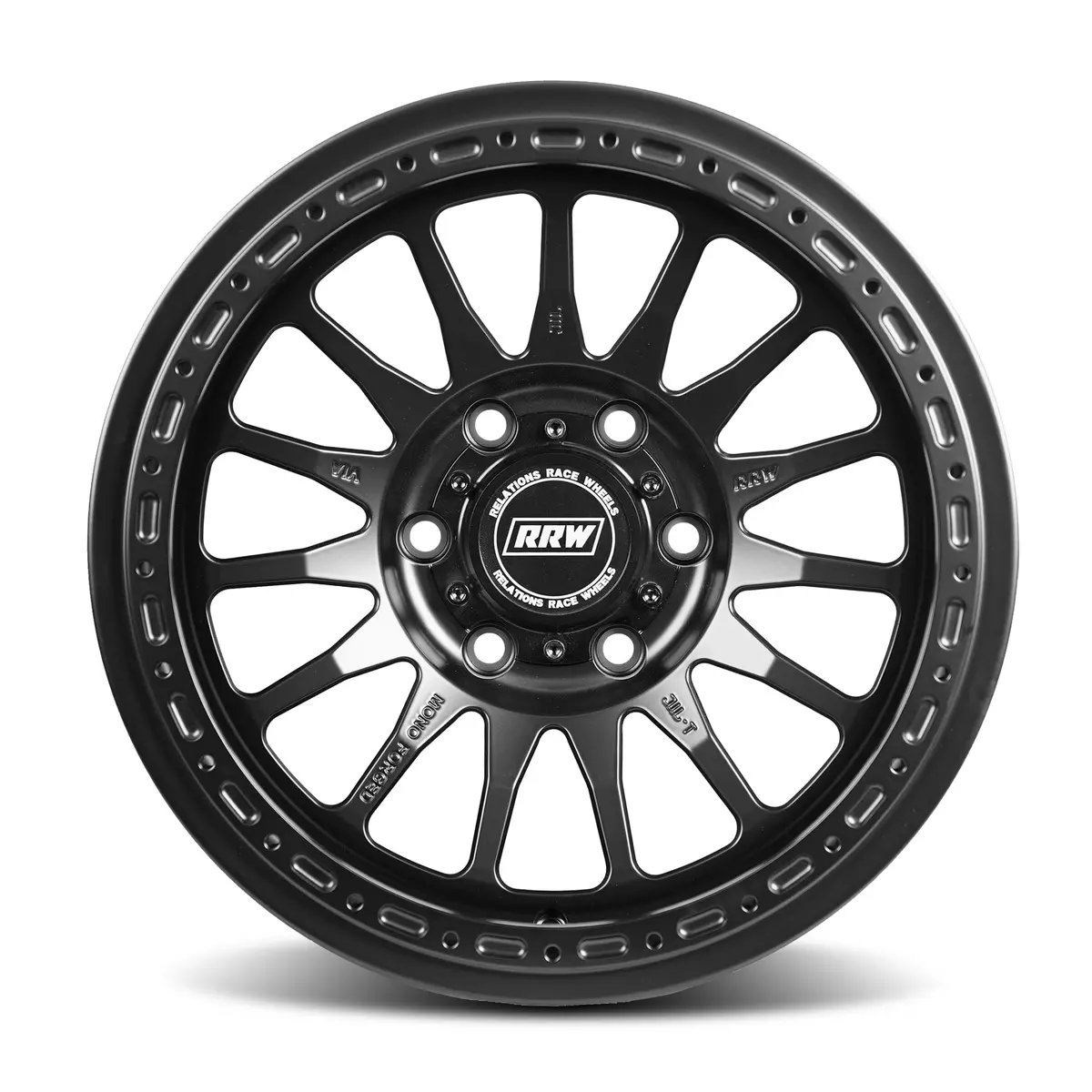

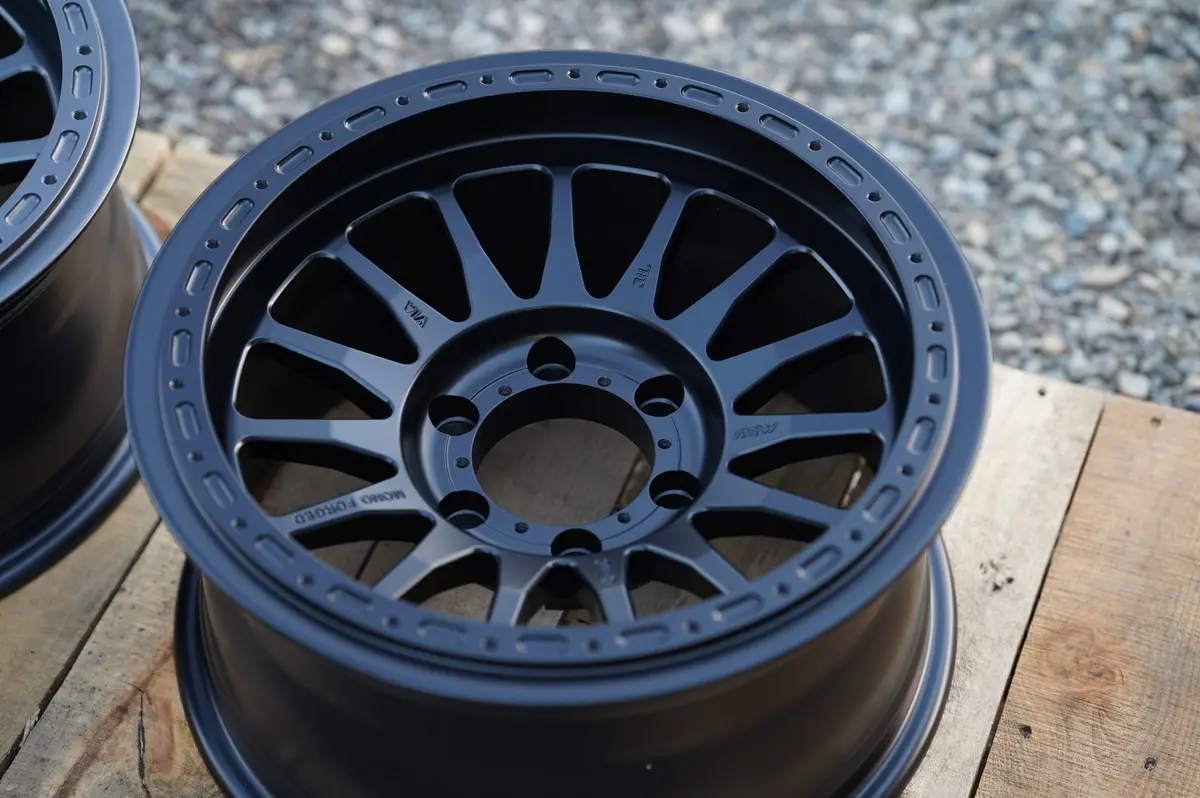

RRW RS7-H Hybrid Monoforged Wheel – 17×8.5, Universal Fit for Toyota Tacoma (2005–Present), 4Runner (2010–2023), FJ Cruiser (2007–2014), Tundra (2007–Present), Lexus GX470

Description

Price displayed is for 1 (ONE) wheel.

The Monoforged Series symbolizes a new generation of off-road wheels, where new streamlined wheel designs are precision machined out of structural 6061-T6 aluminum alloy (commonly used in aerospace), then finished in the latest and greatest painting line technology. This is the Monoforged Series by RRW. (Manufacturing process video coming soon.)

Optimization & construction:

• Each design is streamlined for maximum weight savings, such as large chamfers, milled-out pockets, anywhere possible without compromising structural integrity.
• CNC machined from 6061-T6 billet forging, these wheels are lighter and stronger than ever compared to any cast counterpart. Period.

Premium paint:

• Guaranteed – better than ever paint quality. These are the best wheels we’ve made to date.
• Flawless precision machining. With our Monoforged series, it’s all about the fine details.

Lighter than ever:

• About 15-20% lighter than their cast counterparts in the same model & size.

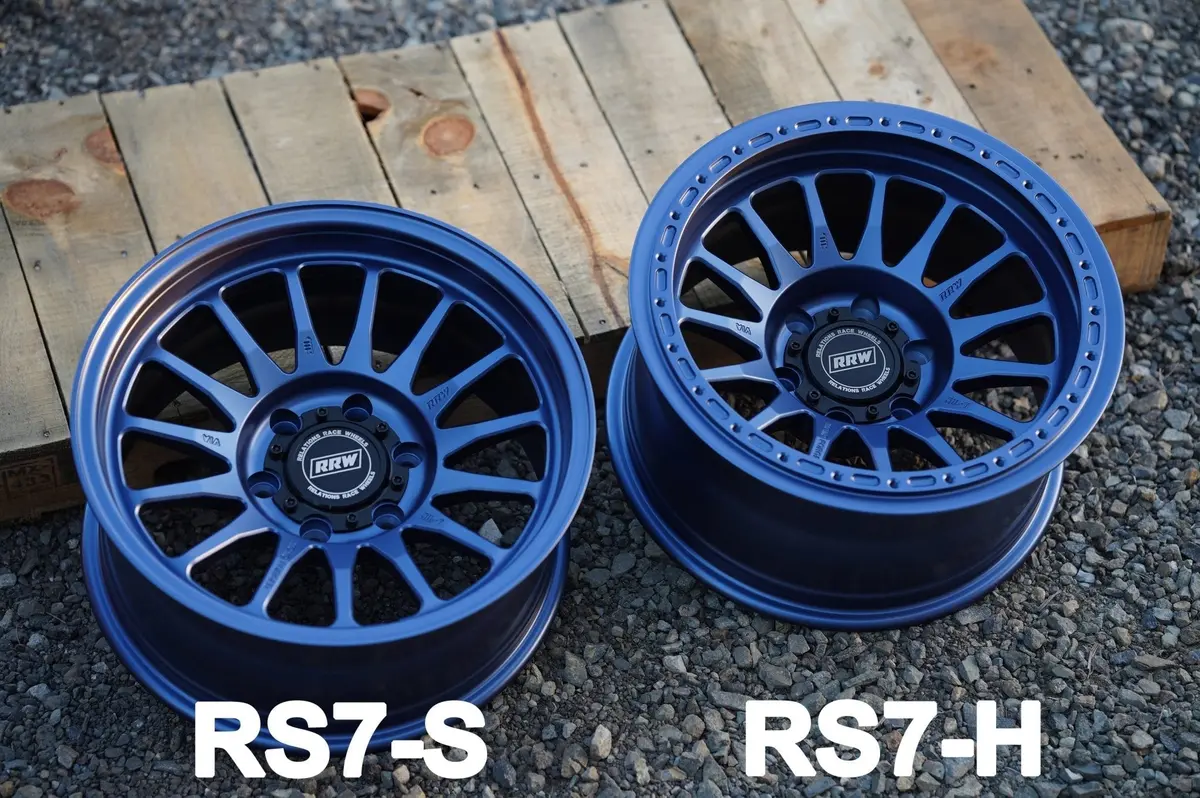

• The -S in a 17×8.5 +0 offset is just right under 20 lbs (that’s designed to a 2500 load rating standard) – This could be the lightest off-road wheel currently on the market.

• Engineered to a load rating of 2500 lbs per wheel. Enough to support any loaded ½ truck in the roughest conditions.
• Now with deeper holes with more (50%) more thread engagement on the -H hybrid series. 25 tapped holes with a M8x1.25 thread pitch.

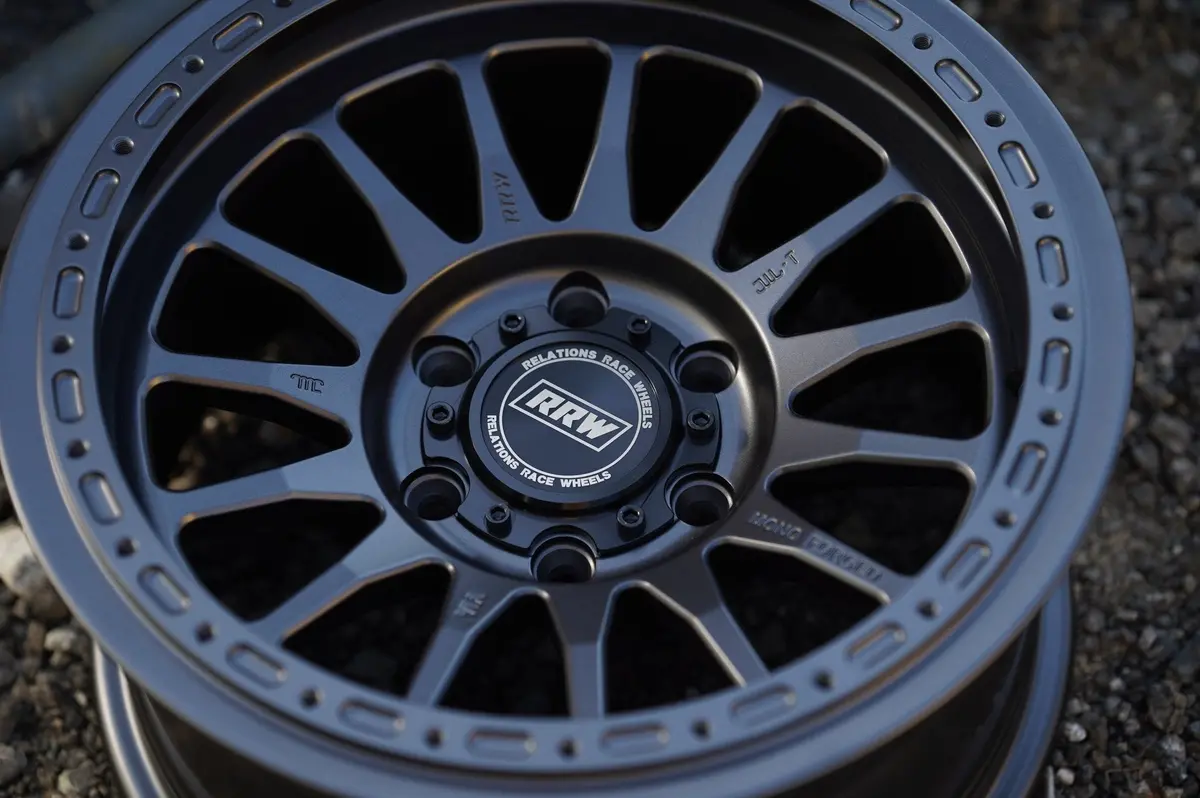

• Billet CNC Aluminum center caps are included as standard option.
• Compatible with our ET lug nuts for maximum thread engagement to wheel studs. Great especially since Toyotas are notorious for having short wheel studs.

Lead times & shipping: Orders will be shipped via Fedex Ground and will require signature.

Specifications:

• Size: 17×8.5
• Bolt pattern: 5×150, 6×135, 6×5.5/6×139.7
• Center bore for 6×5.5 for 0, -12, -25: 106.1 mm (hub-centric for Toyota trucks and GX).
• Center bore for 6×5.5 +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550).
• Center bore for 6×135: 87.2 mm (hub-centric for F150).
• Center bore for 5×150: 110.1 mm (hub-centric for 22-older Tundra).
• Load Rating: 2500lbs.
• Weight of +0: ~25lbs.
• Backspacing for +25 is 5.73″, +0 is 4.75″, -12 is 4.28″, -25 is 3.77″
• Includes billet aluminum center caps.
• Compatible with TPMS.
• Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels.

Features

• Deep stepped hybrid lip, compatible with the protection ring, billet protection ring or true beadlock ring.
• Forged construction makes the wheels lighter but stronger than regular cast wheels.
• Made from Forged 6061-T Aircraft Grade aluminum.
• Superior paint finish.

Vehicle fitment:

• 6×5.5: Toyota Tacoma (2023 and older), 4Runner, FJ Cruiser, Lexus GX470.
• 5×150: Toyota Tundra (2021-2007).
• 6×5.5 +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+).

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications.

Note: Photos of all finishes will be added soon.
