Description
VIAIR’s brand new 425C Gen. 2 compressor delivers game-changing performance, capable of putting out 4.94 CFM at zero PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump.

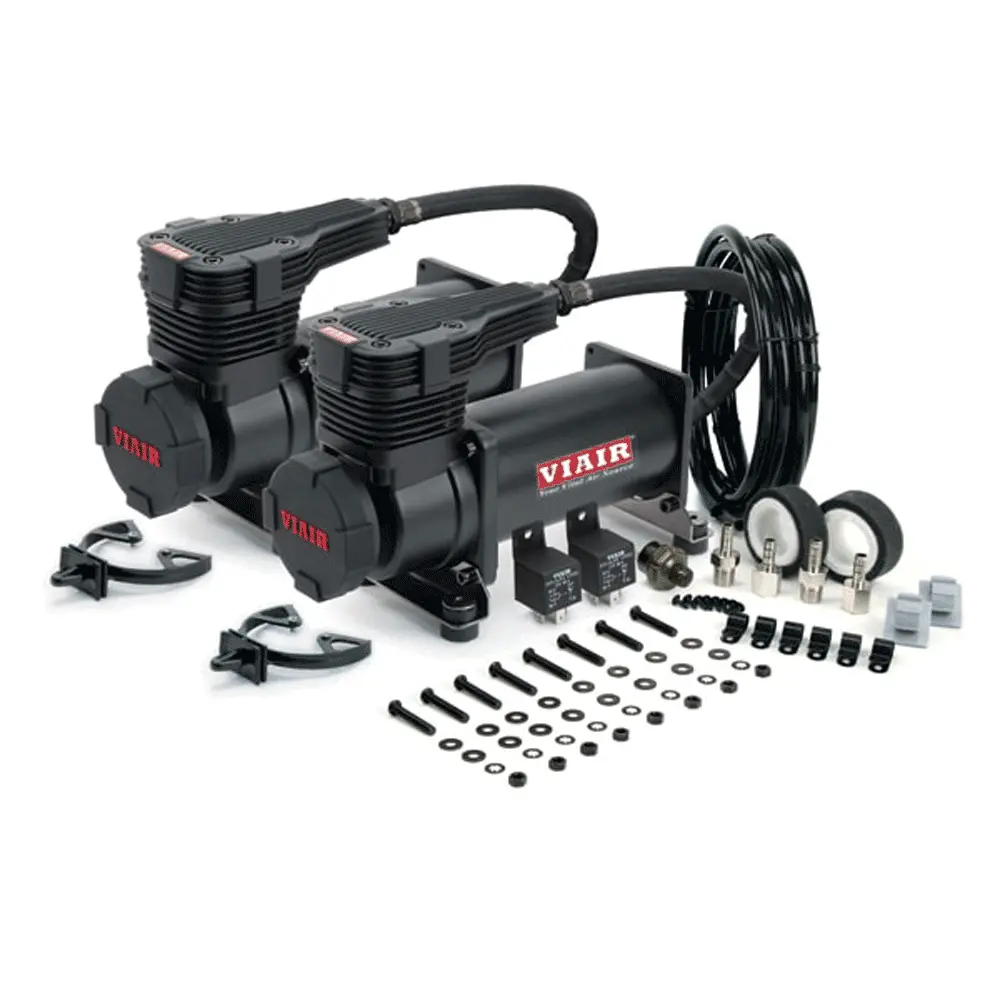

The 425C Dual Performance Value Pack features two 12V 425C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 425C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Features:
- (2) 425C (platinum or stealth black) compressors with thermal overload protectors.
- Stainless steel braided leader hose with inline check valve.
- (2) air filter assemblies.
- (2) VIAIR removable filter covers.
- (2) replacement air filter elements.
- (2) remote mount brackets.
- (2) sets of remote mount fittings.
- Set of spare air filter elements.
- (2) leader hose clips.
- (6) air line clips with included hardware.
- (8) sets of nuts, bolts, washers, and lock washers.
- (2) heavy duty 40-amp relays.
- (1) heavy duty pressure switch (140 PSI on, 175 PSI off).
- Air line (for remote mount filter installation).
Specifications:
- 12-volt.
- Permanent magnetic motor.
- Duty cycle: 50% @ 100 PSI
- Duty cycle: 33% @ 175 PSI
- Max. working pressure: 175 PSI
- Max. air tank size: 10.0 gallon
- Combined max. amp draw: 60-amps
- Ingress protection rating: IP67
- Max ambient temp: +158°F
- Min ambient temp: -40°F
- Dimensions: 9.25″L x 3.31″W x 6.59″H
- Net weight: 11.10lbs.
