Wheelmaster 20″ BMX Wheel with 3/8″ Axle Hub

Description

Choose from Front, Rear or Wheelset

Important fit notes:

• Both front and rear wheels have 3/8″ axles.
• Does not fit any bike that uses a 9t rear cog.
• Does not fit 14mm axles.
• Requires the use of a freewheel, not included.
• Threaded Standard 1.37″ x 24tpi accepts 16t freewheels and larger
• Can not be fitted with coaster brake for backpedal braking.
• DOES NOT FIT 20×1-3/8 does not fit ISO 451

YOU CHOOSE COLOR:
Black or Silver

YOU CHOOSE POSITION:

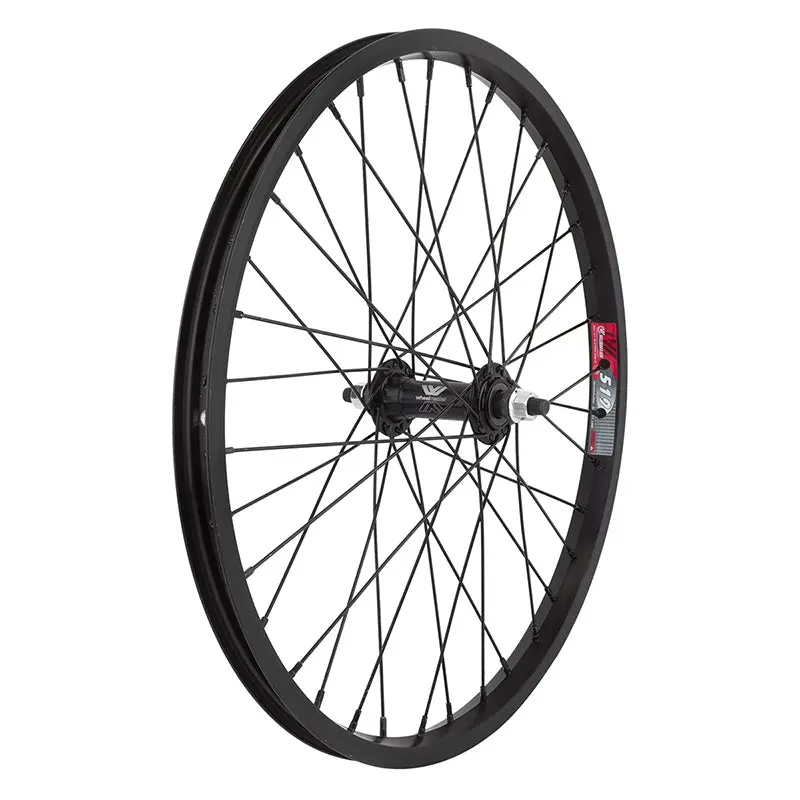

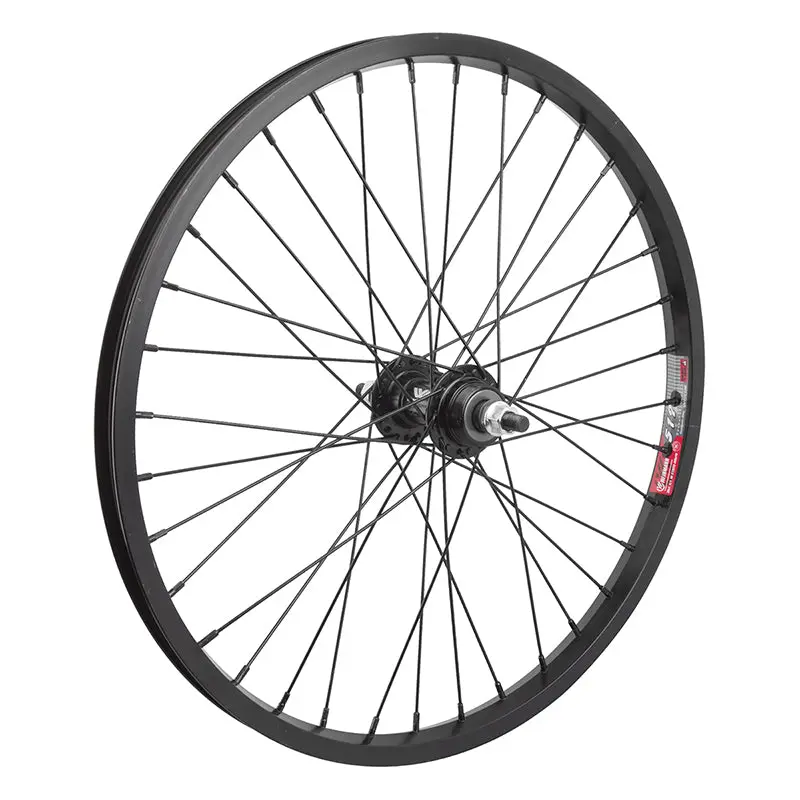

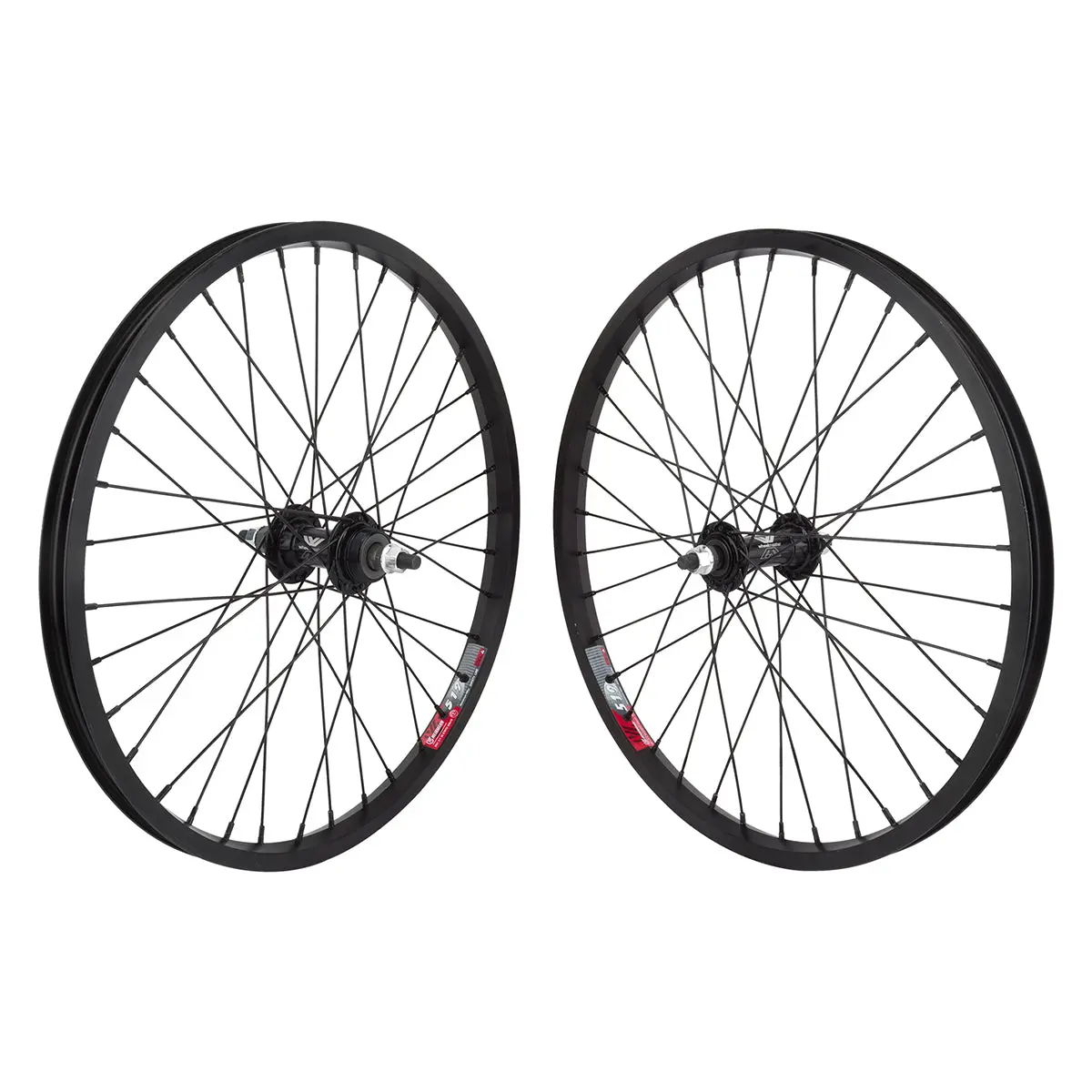

Front or Rear or Front & Rear Wheelset

Weinmann 519 Rims:

• Lightweight Durable Aluminum Alloy
• Designed for rim brakes
• Single wall Rim
• Accepts 20″ tire diameter (ISO 406)
• 19mm inside width
• 24mm outside width
• Schrader valve drilled

Wheelmaster AB-1000 Hub:

• Thread on freewheel compatible rear hub
• Rear Hub: 1.37×24 tpi right hand freewheel threading
• Loose ball bearings
• 100mm FRONT dropout spacing
• 140mm total FRONT axle length
• 110mm REAR dropout spacing
• 155MM total REAR axle length
• Bolt on 3/8″ Axle
• Axle nuts included

Spokes:

• 36 count
• 14g UCP

Published Weights

• Rear Wheel: 804g
• Front Wheel: 774g

Assembled in USA made with Asian sourced rims, hubs and spokes
